Accsoon A1-Pro

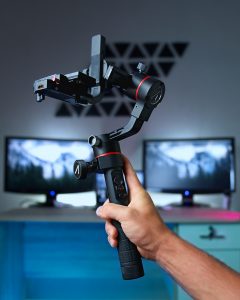

And here we are …Professional Gimbal

the fresh gimbal from accsoon . A1-PRO has follow focus wheel , CineEye-wireless image transmission ,also phone holder and anti slip grip.

the modes are the same as in A1-S but this Pro version got the CineEye one of the best features every filmmaker wish to have ! being able to see live view on your phone or tablet, or just handle it to your friend or college to monitor framing is just awesome.

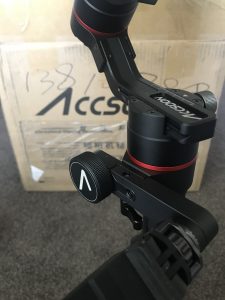

speaking of cool stuff we have focus wheel on side for now just for cameras and lenses with support focus or zoom by the wire, but I heard from Accsoon they going to release focus motor for us without support of focus by wire.

you can see new stuff with this version right out of box :

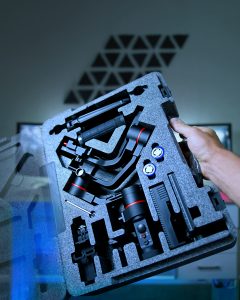

it has new carry case similar to ronin s carry case , where everything has place and it is securely on place while you travel or moving. inside is tripod, new grip, gimbal it self , phone holder, charger ,camera plate with long lens support, and two batteries and pouch with cables. carry case has two locks to keep the case close .

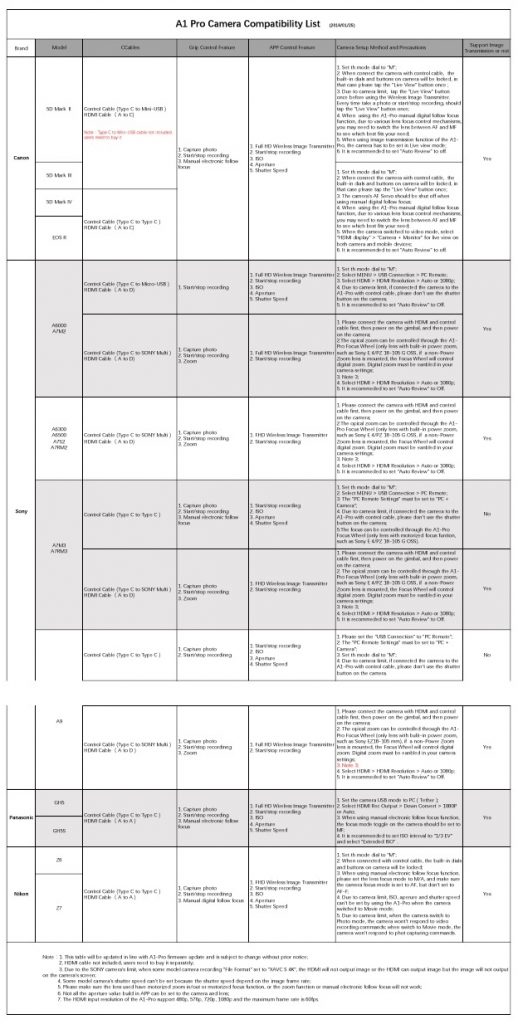

here is camera support list:

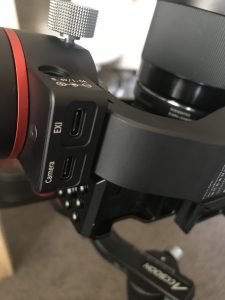

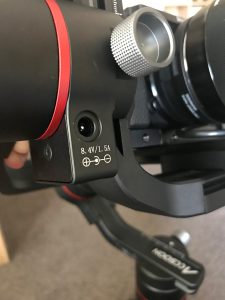

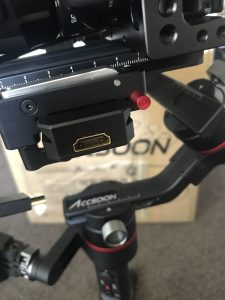

gimbal got 3x usb type c connectors , DC power out 50mm 7,4V 1.5A barrel connector and full size HDMI . one USB type c is on the side of control panel and rest is on top of gimbal , HDMI is situated on end of tilt arm and two USB type C are on bottom of tilt motor case- one for camera remote cable and second I think will be for follow focus motor , DC power out is on front of tilt motor case. Oh yes now you can power your camera from gimbal .

connectors:

DC power out 2x USB C Full HDMI

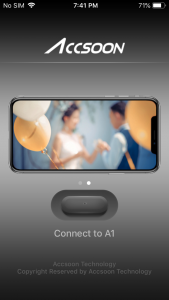

new CineEye app :

live feed is transmitted via wi-fi so first you need to jump in to your settings and connect to CineEye device …should be straight forward if password needed use default 12345678 and go back to accsoon app and swipe left to acmes CineEye part … click “ON” on left bottom and you will see live feed .

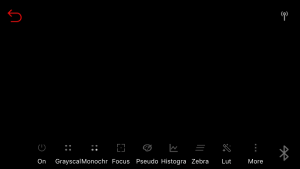

also on bottom you have several options starting with : grayscale, monochrome, focus,pseudo,histogram,zebra, LUT , and “more”.

I created few free LUTs for CineEye: download here

for LUTs you have list of your presets (Luts) simply drop your .cube file to your phone and Accsoon app will acces and show in the LUT list.

yes it has focus peaking and preset preview …

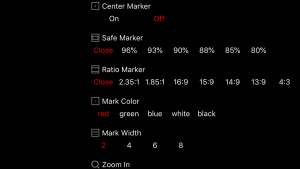

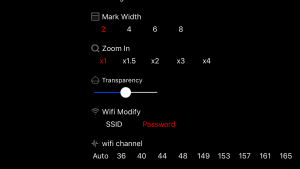

in MORE you can set output blanking or zoom in up to 4X and much more:
